The ID-150 is an identity document scanner used to capture images and data from driver-license-sized (ICAO ID-1) documents for use with the PALIDIN™ ID Document Authentication software:
  • More than 1,100 US state-issued Identification Documents (e.g. Driver Licenses & Identification Cards)
  • Federally-issued Identification Documents (e.g. Military IDs, Green Cards, TWIC cards, Congressional ID's, )
  • Foreign Government-issued Identification Documents (e.g. driver licenses & national ID cards)

Advantages and key features:
  • A simple one-step process: Insert a driver license into the front feeder and wait for the results to be displayed
  • Ability to integrate data via Software Development Kit (SDK)
  • Checks multiple data and security points on identity documents in both visible and infrared (IR) light


  • Verification Types

    • ID Authentication
    • ID-1 Documents

  • Power Supply

    • 12V/1A (external supply

  • Host PC Requirements

    • CPU: Intel Only: Intel Core i5 (minimum 2 GHz)
    • Operating System: Windows 10 Pro 64 bit or 11 Pro 64 bit
    • Ram: 8 GB
    • Disk Space: 128 GB

  • Dimensions

    • Width: 4.60" (11.684 cm)
    • Height: 2.67" (6.781 cm)
    • Depth: 6.61" (16.789 cm)

  • Net Weight

    1.41 lbs (.64 kg)

  • Light Bands

    Visible, Infrared

  • Image Resolution


id150 id authentication system dimensions


• What types of documents can the ID-150 authenticate?

The ID 150 is designed for authenticating ID documents. It is designed to automatically identify and authenticate ID-1 documents, an international (ICAO) standard-sized ID document. In the U.S., ID-1 includes drivers’ licenses, state ID cards, military ID’s, Green cards and a variety of other similarly-sized government-issued ID cards that people use as proof of identity. Internationally, ID-1 will also include many National ID cards, voter registration cards, diplomatic cards, passport cards and other ID documents.

• What environments can the ID-150 be used in?

The ID-150 has a very small footprint so it is perfect for environments where space is limited. It is ideal for locations where the vast majority of customers will be presenting ID cards rather than passports or other non-ID-documents.

A Windows-based PC is required for standard installations. Custom installations allow the use of thin clients in the .NET framework with centralized processing of licenses and data at server-level.

We currently have a mobile ID Authentication solution, MobilVerify, in beta. If you would like to try the beta version MobilVerify for free, please fill out the form on this page.

• How does the ID-150 work?

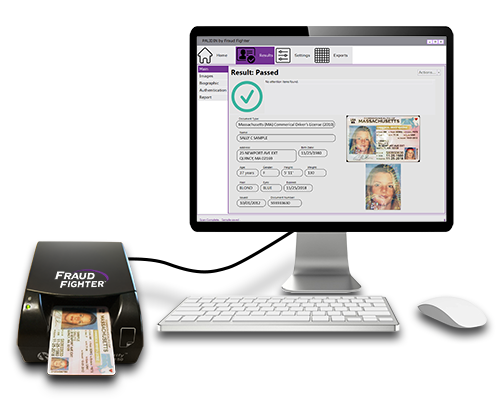

The ID-150 is a hardware/software platform that captures high-resolution, full color images of the ID document using both natural and infrared sources. The device also “reads” information from magnetic strips, barcodes, smart-chips, and digital watermarks.

After the ID-150 captures the images and the data, the PALIDIN™ software application performs multiple security checks using a comprehensive database of ID documents. Multiple points on the document are checked to make certain that proper manufacturing technique was used, and that the document itself contains the proper design elements. The data captured from different locations on the document are cross-checked to make sure that information such as name, birth date, issue date, expiration date, etc. all match.

When the application is finished, it will display either a “pass” or “fail” grade.

Data and images captured from the ID document may be treated by the user. The PALIDIN™ Software Development Kit enables customization of the data management, including potential exporting of the data to third-party databases and core enterprise applications.

• What comes with the ID-150 when I buy it?

• A power cord to connect your ID-150 to an external power supply (Note: The ID-150 does not need a power supply to work as long as its internal lithium battery is charged)
• A USB cord to connect your ID-150 to a PC
•  Information about your PALIDIN™ software license key, and an owner's manual (PDF) that includes a quick set-up guide

Warranty Info

• The ID-150 Hardware device comes with an included one-year full service warranty which includes depot service. Additional years are also available for purchase.

• The purchase of a PALIDIN™ software license includes 12 months of software and document library updates to maintain the highest level of assurance for our customer. Annual renewals are available, and may be purchased in-advanced.
